The current position:Home > Products > Ceramic testing equipment > Ceramics for daily impact tester

Click to enlarge

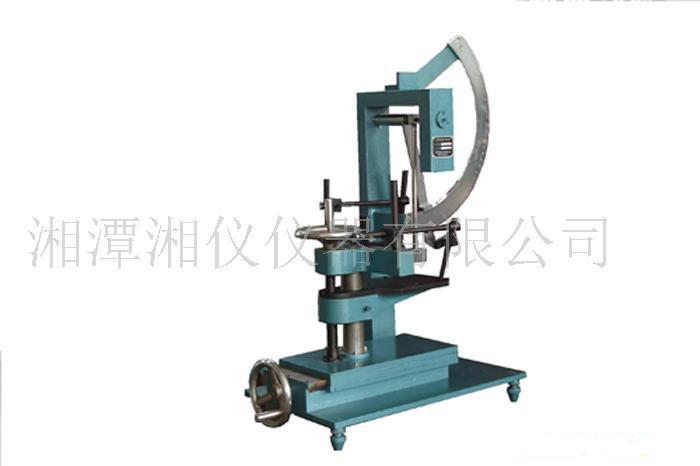

Ceramics for daily impact tester

RELATED ARTICLES
Introduction


A purpose
CJB the household ceramics impact tester used to;
1 flatware and hollowware center edge of the impact test and hollowware impact test.
2. Flatware edge crush test, sample both on glaze, glazed or not.
The impact test on the test center is used for measuring:
1. Produce a blow to the energy of the initial crack.
2 generated completely broken by the energy required.

II. Main technical specifications

1, the maximum impact energy of 1.962 joules
2, the minimum scale of the dial value 0.066 joules
3, pendulum clocks largest Yang angle of 120 ℃
4, the pendulum shaft center distance of 300 mm from the point of impact
Worktable lifting a distance of 120 mm
6 workbench largest vertical move back a distance of 210 mm
7, sample specifications
6 inch to 10 inch and a half flat plate, not more than 10 cm in height, with a caliber of less than 8 cm Bowl diameter not less than 8 cm Cup class
8, tester net weight of 50 kg
9 tester Dimensions      890×370×925
